Product Description

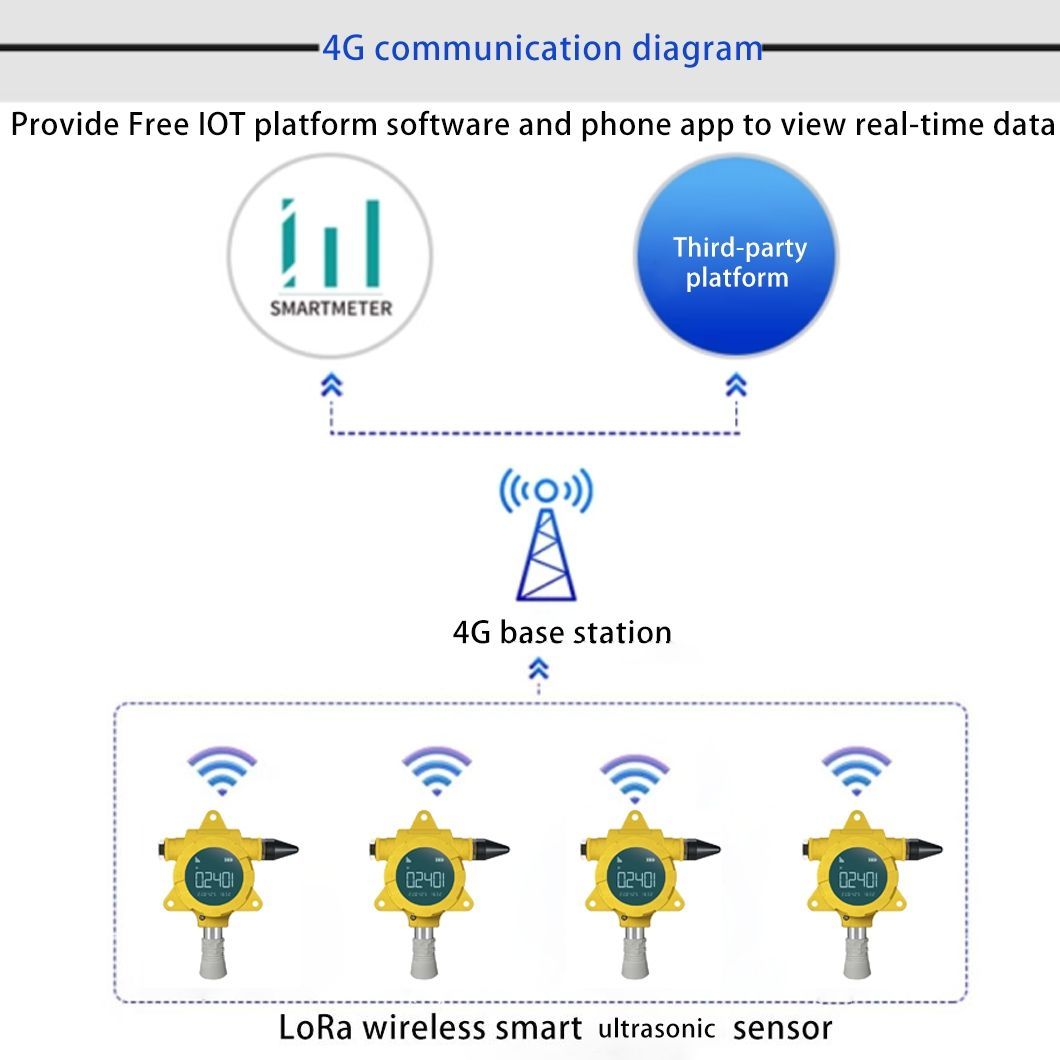

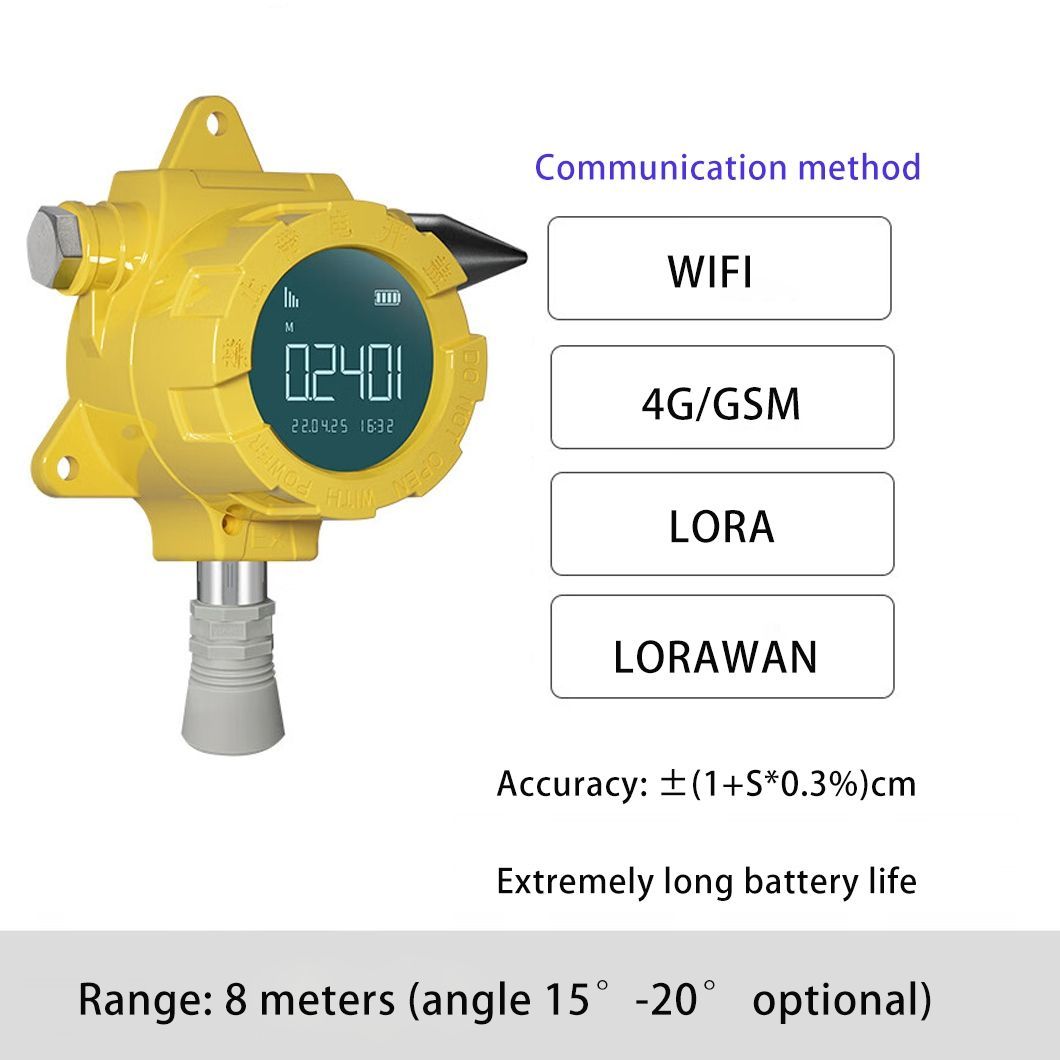

The TP2405 explosion-proof ultrasonic level transmitter provides reliable non-contact liquid level measurement. Equipped with NB-IoT, 4G and LoRa multi wireless communication, it enables real-time remote level data access. It has an 8m measurement range with selectable 15°/20° beam angles. Its unique measurement technology delivers better precision than conventional float gauges. Certified IP66, CE and RoHS, it is ideal for industrial tanks and water reservoirs.
Product Parameters
| Product Name |
Wireless Ultrasonic level sensor |
| Working power |
Battery powered waterproof version 3.6V, 17Ah; explosion-proof version 3.6V, 19Ah
(External power supply and rechargeable version need to be specified) |
| Battery life |
NB-IOT/ LoRa communication: 5-6 years (data is uploaded once an hour, with a stable signal) |
| 4G communication: 2-2.5 years (data is uploaded once an hour, with a stable signal) |
| Battery model (non-rechargeable batteries, replaceable batteries) |
| Display |
TFT LCD screen |
| Power consumption |
Standby current ≤80uA, average data transmission current ≤150mA1 |
| Network Standard |
WIFI, 4G(SIM card), LoRa (Need use our LoRa gateway), RS485,LoRaWAN, NB-IOT, GPRS optional |
| Antenna |
External antenna |
| Sampling interval |
Configurable time is 10S~2550S |
| Configuration |
Configurable time is 1min~1440min. Note: The shorter of configurable time, the shorter usage of battery life |
| Data transmit interval |
USB configuration operation, server remote configuration, Bluetooth configuration |
| Wake-up mode |
Button, timing |
| Upload information |
level, temperature, battery level, signal, card number |
| Operating temperature |
-30°C~70°C(Medium does not crystallize) |
| Measuring range |
0-8M (Measuring angle 15 or 20 degrees optional) |
| Measurement accuracy |
±(1+S*0.3%)CM |
| Measurement blind area |
25CM |
| Temperature compensation |
With temperature compensation |
| Interface specifications |
Ultrasonic measurement |
| Protection level |
Waterproof model IP66; explosion-proof model IP68 |
Product Advantages
- Stainless Steel Construction
Durable, corrosion-resistant, and suitable for harsh industrial environments.
- High Measurement Accuracy
Accuracy up to ±(1+S*0.3%) cm for reliable level measurement.
- Up to 8M Measurement Range
Supports level monitoring for tanks, vessels, and various industrial applications.
- Explosion-Proof Design
Suitable for hazardous environments with enhanced operational safety.
- IP68 Waterproof & Dustproof
Excellent protection against water, moisture, and dust for outdoor use.
- Non-Contact Measurement
Ultrasonic technology enables measurement without direct contact with the medium.
- Wide Application Range
Suitable for continuous level monitoring of liquids and other materials.
- Stable & Reliable Performance
Designed for long-term operation in industrial automation, remote monitoring, and IoT applications.
