4 Inch Touch Screen Paperless Recorder Multi Channel Data Acquisition Device for Temperature Pressure Voltage Current Monitoring

4 Inch Touch Screen Paperless Recorder Multi Channel Data Acquisition Device for Temperature Pressure Voltage Current Monitoring

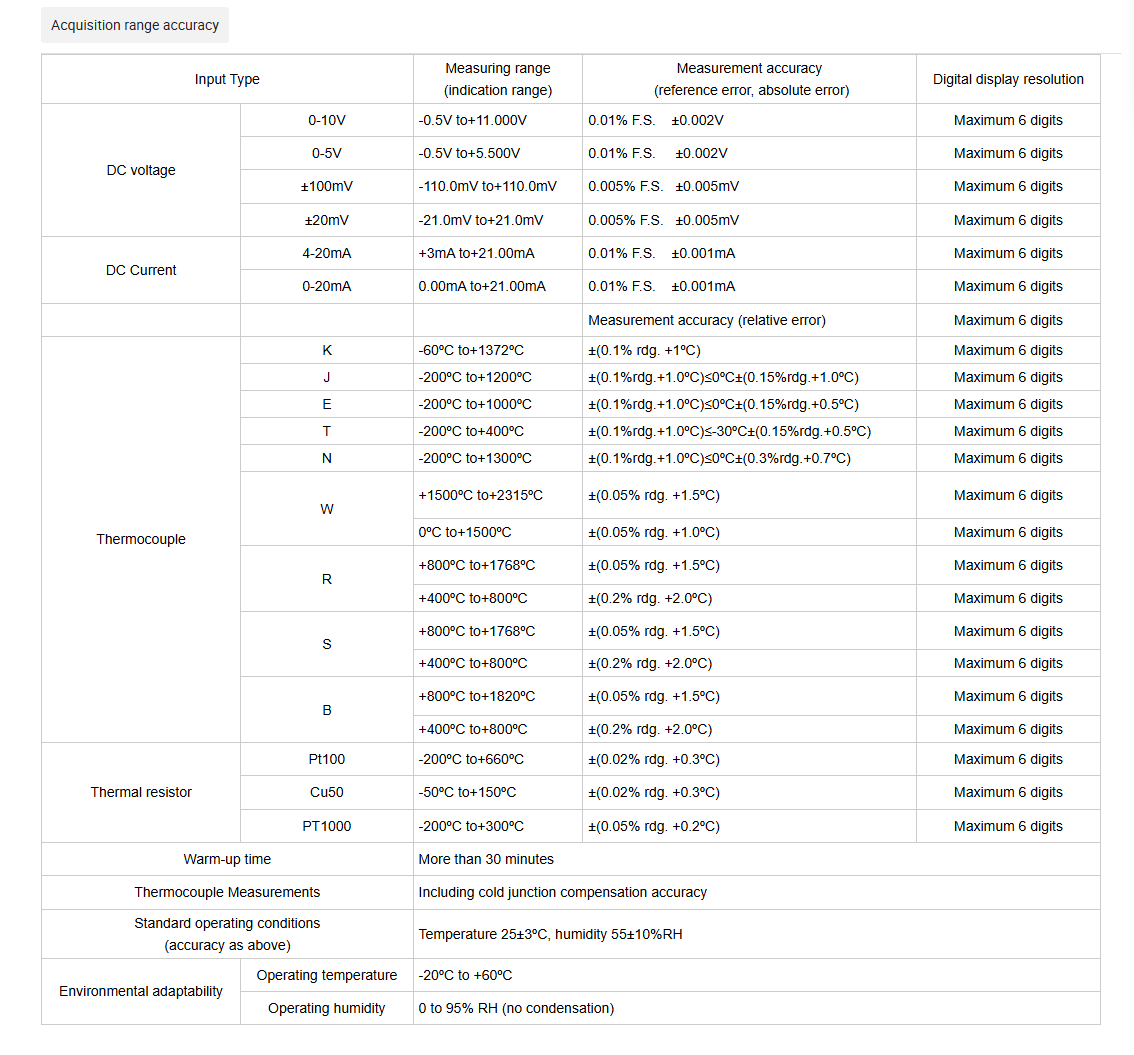

Universal High Precision Signal Acquisition:Supporting 1 to 12 configurable channels, TP740 accepts thermocouples, RTDs, 4 20 mA, voltage, frequency and pulse inputs. It delivers 0.05 percent FS accuracy with 420 V channel isolation against field interference. Freely adjust recording intervals. Eliminate extra signal converters for reliable process traceable data in pharmaceutical, chemical and thermal test applications.

Robust 4 inch Touch HMI with Dust Proof Cover: Featuring a 4 inch capacitive touch screen rated for 50 million touches, this recorder shows values, real time curves, bar graphs and alarm logs. A flip up transparent cover shields against dust and moisture. Standard 96 * 96 mm panel mounting fits compact cabinets. Operators configure and query data easily without advanced training.

Flexible Wired and Wireless IoT Connectivity: Dual RS485 and Ethernet ports run Modbus RTU and TCP for direct PLC SCADA integration. Optional Wi Fi, 4G, LoRA or Thread modules enable remote data transmission. Monitor multiple devices simultaneously via PC browser or mobile client. Perfect for new factory builds and legacy site retrofits with reduced cabling costs.

Product Specfication

4 inch touch screen paperless recorder

multi channel data acquisition device

temperature pressure voltage current monitor

4 Inch Touch Screen Paperless Recorder Multi Channel Data Acquisition Device for Temperature Pressure Voltage Current Monitoring Images
