Smart 1-12 CH Paperless Data Logger Built-in Data Acquisition Card 4 Inch Multifunctional Recorder WiFi RS485 4G

Smart 1-12 CH Paperless Data Logger Built-in Data Acquisition Card 4 Inch Multifunctional Recorder WiFi RS485 4G

Product Features

Universal High Precision Signal Acquisition:Supporting 1 to 12 configurable channels, TP740 accepts thermocouples, RTDs, 4 20 mA, voltage, frequency and pulse inputs. It delivers 0.05 percent FS accuracy with 420 V channel isolation against field interference. Freely adjust recording intervals. Eliminate extra signal converters for reliable process traceable data in chemical and thermal test applications.

Robust 4 inch Touch HMI with Dust Proof Cover: Featuring a 4 inch capacitive touch screen rated for 50 million touches, this recorder shows values, real time curves, bar graphs and alarm logs. A flip up transparent cover shields against dust and moisture. Standard 96 * 96 mm panel mounting fits compact cabinets. Operators configure and query data easily without advanced training.

Wide Range Power Resilient Multi Industry Hardware: Works with AC 85 to 265 V or DC 24 to 110 V power, low power consumption ≤5 VA. Operating range from minus 20 degree Celsius to 60 degree Celsius, 0 to 95 percent RH non condensing. Flame retardant ABS housing plus relay outputs drive external alarms. tire making, vacuum furnaces, petroleum and new energy testing. Shorten project cycles with standardised hardware.

Smart paperless data logger WiFi

Multifunctional recorder RS485 4G

4 inch data acquisition card

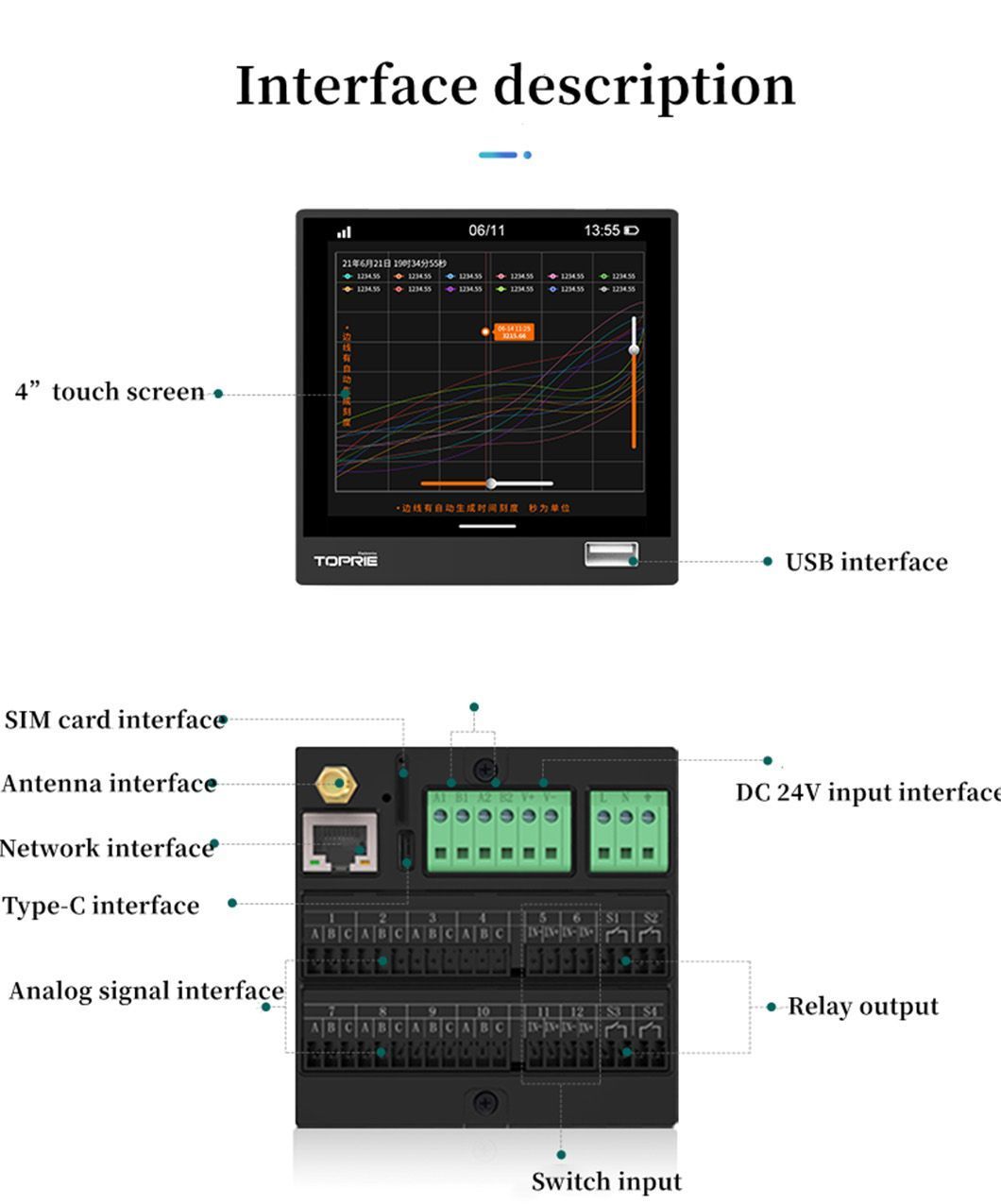

Smart 1-12 CH Paperless Data Logger Built-in Data Acquisition Card 4 Inch Multifunctional Recorder WiFi RS485 4G Images
